Product Announcement: McIntosh Mc901

McIntosh has been perfecting vacuum tube amplifiers since the 1940s and solid state amplifiers since the 1960s. Our amplifiers have been used at many historic events including presidential inaugurations and Woodstock, as well as in landmark sound systems like the Grateful Dead’s Wall of Sound and Despacio.
From that heritage comes a truly one-of-a-kind home audio amplifier only we could dream of, design and build as the ultimate solution for bi-amping loudspeakers: the McIntosh MC901 Dual Mono Amplifier.

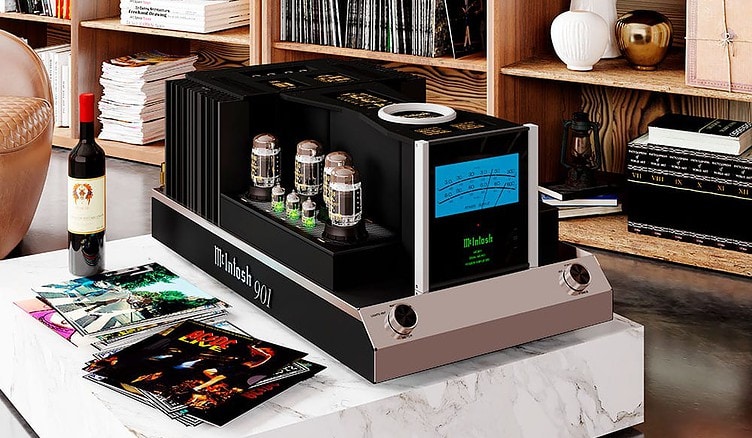

mc901

Tube and Solid State together

The MC901 is a monoblock amplifier that drives a single speaker. But it is unlike any other monoblock amplifier. What makes the MC901 so unique is that it’s two amplifiers combined into one. Adding to the uniqueness is that each amplifier is of differing design philosophies: the MC901 consists of a 300 Watt vacuum tube amplifier attached to a 600 Watt solid state amplifier on one unified chassis.

mc901

The 300 Watt vacuum tube portion powers the speaker’s mid and upper drivers via eight KT88 output tubes, plus four 12AT7 and two 12AX7A signal tubes; the solid state section delivers 600 Watts of dedicated power to the power hungry woofers.

The 300 Watt vacuum tube amp in the MC901 uses our patented Unity Coupled Circuit output transformer – the same technology McIntosh was founded on in 1949 – to deliver its full 300 Watts into almost any speaker regardless if it has 2, 4 or 8 Ohm impedance. Similarly, the 600 Watt solid state amp delivers its full 600 Watts into a 2, 4 or 8 Ohm impedance speaker via our Autoformer™ technology.

Head over to McIntosh for more info:
https://www.mcintoshlabs.com/products/amplifiers/MC901

Specs:

  • Power Output per ChannelSolid State section: 600 Watts @ 2, 4 or 8 Ohms
    Vacuum Tube section: 300 Watts @ 2, 4 or 8 Ohms
  • Number of Channels1
  • Total Harmonic DistortionSolid State section: 0.005% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz

    Vacuum Tube section: 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
  • S/N below rated outputSolid State section: 122dB
    Vacuum Tube section: 112dB
  • Dynamic HeadroomSolid State section: 1.8dB
    Vacuum Tube section: 1.2dB
  • Damping FactorSolid State section: >40
    Vacuum Tube section: >18
  • Rated Power BandSolid State section: 20Hz to 20kHz
    Vacuum Tube section: 20Hz to 20kHz
  • Frequency ResponseSolid State section:
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 100,000Hz

    Vacuum Tube section:
    +0, -0.5dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 70,000Hz

We have not yet heard this unit, we do not have an opinion or review. Contact you local dealer for an opportunity to audition.
